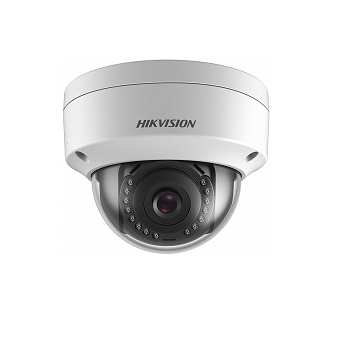

CAMERA IP HIKVISION DOME 1.0MP DS-2CD1101-I
Camera IP HD Hồng ngoại 1MP chuẩn nén H.264
Cảm biến ảnh CMOS 1/2.8".
Độ phân giải 1Mp. Chuẩn nén H.264.
Tùy chọn ống kính 4/6mm.
Tính năng cắt lọc hồng ngoại ICR,
Tính năng chống ngược sáng số DWDR,
Giảm nhiễu số 3DNR, Tính năng bù sáng BLC.
Hồng ngoại 30m.
Nguồn 12VDC& POE.
Đặc tính kỹ thuật
| Image Sensor | 1/4 inch progressive scan CMOS |
| Min. Illumination | Color: 0.01Lux @(F1.2,AGC ON) ,0 Lux with IR; B/W: 0.0036Lux @(F2.0,AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s, support slow shutter |
| Focal length | 2.8 mm @F2.0, horizontal field of view 105.8°, 4 mm @F2.0, horizontal field of view 83.6°, 6 mm @F2.0, horizontal field of view 55° |
| Lens Mount | M12 |
| Day &Night | IR cut filter with auto switch |
| 3-Axis Adjustment | Pan: 0° to 355°; Tilt: 0° to 70°; Rotation: 0° to 355° |
| DNR (Digital Noise Reduction) | 3D DNR |
| Wide Dynamic Range | Digital WDR |
| Compression Standard | |
| Video Compression | Main stream: H.264, Sub stream: H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile |
| Video Bit Rate | 32 Kbps to 2 Mbps |
| Image | |
| Max. Resolution | 1280 × 720 |
| Main Stream Max. Frame Rate | 50Hz: 25fps @(1280 × 720), 60Hz: 30fps @(1280 × 720) |
| Sub-stream | 50Hz: 25fps @(640 × 480, 352 × 288, 320 × 240), 60Hz: 30fps @(640 × 480, 352 × 240, 320 × 240) |
| Max. Frame Rate | |
| Image Settings | Brightness, saturation, contrast, sharpness are adjustable via web browser or client software |
| Day/Night Switch | Support auto, scheduled |
| Others | Mirror, BLC (area configurable), region of interest (support 1 fixed region) |
| Network | |
| Detections | Motion detection |
| Alarms | Video tampering, network disconnected, IP address conflicted, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6 |
| Standard | ONVIF (PROFILE S,PROFILE G),PSIA,CGI,ISAPI |
| General Function | One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Reset | Support |
| General | |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) |
| Power Supply | 12 V DC ± 25%, PoE (802.3af) |
| Power Consumption | Max. 4 W |
| Protection Level | IP67, IK10 |
| IR Range | Up to 30 m |
| Dimensions | φ111 mm × 82 mm |
| Weight | 500 g |
